WUS-Vollwärmeschutzdübel (Set) - Das Original

The WUS full thermal insulation plugs, also known as "ETICS plugs", are used for the installation of rainwater pipe clips in ETICS mineral wool systems and hollow bricks.

In addition to preventing thermal bridges in the masonry, our ETICS plugs offer secure fastening for a distance of up to 200 mm.

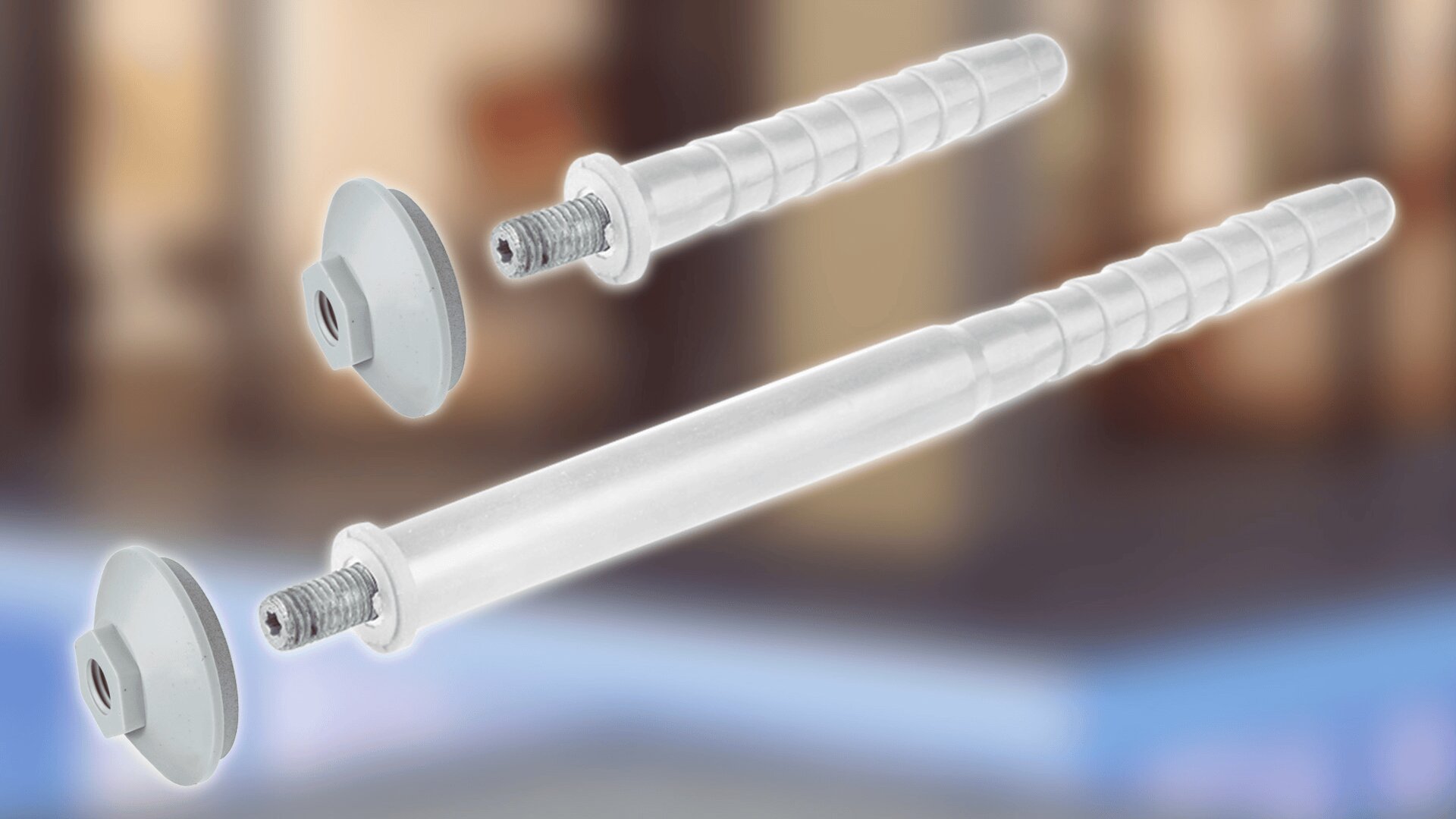

The ETICS plugs are available from us in sets. Each set contains 5 plugs, 5 hot-dip galvanized M10 hanger bolts (for hot-dip galvanized pipe clamps with connecting thread) and 5 M10 washers with EPDM lining and wrench attachment (SW17).

All plug sets offer the installer a load-bearing capacity of 150N / 15kg shear force and 350N / 35kg pull-out force.

Plus points

• Thermal bridge-free installation
• For ETICS from 100-200 mm or direct installation in bricks
• Hanger bolt and pipe clamps with connection thread
• Rosette: EPDM lining, wrench attachment, paintable

Available in lengths:

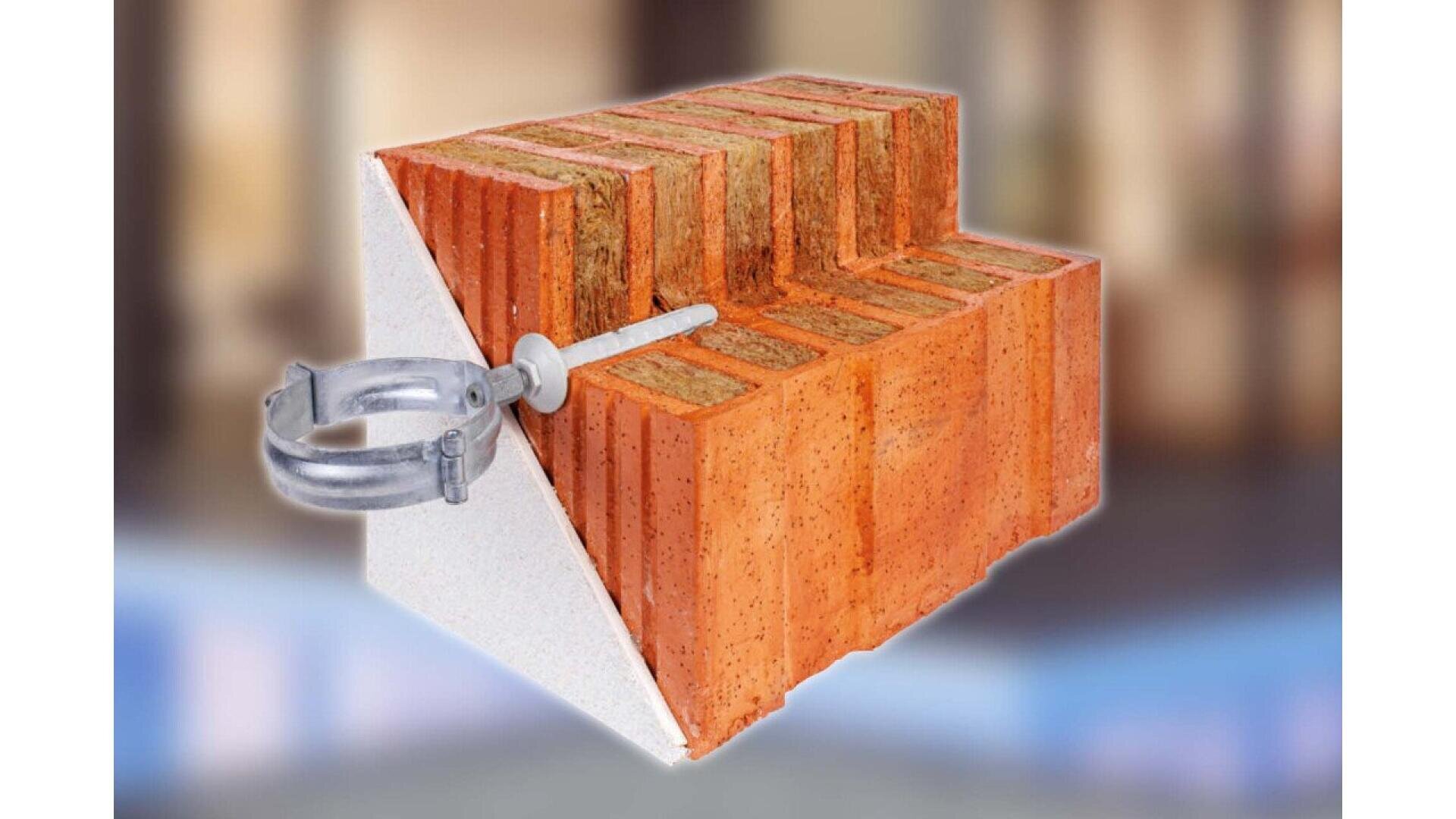

• 120 mm for direct installation in bricks

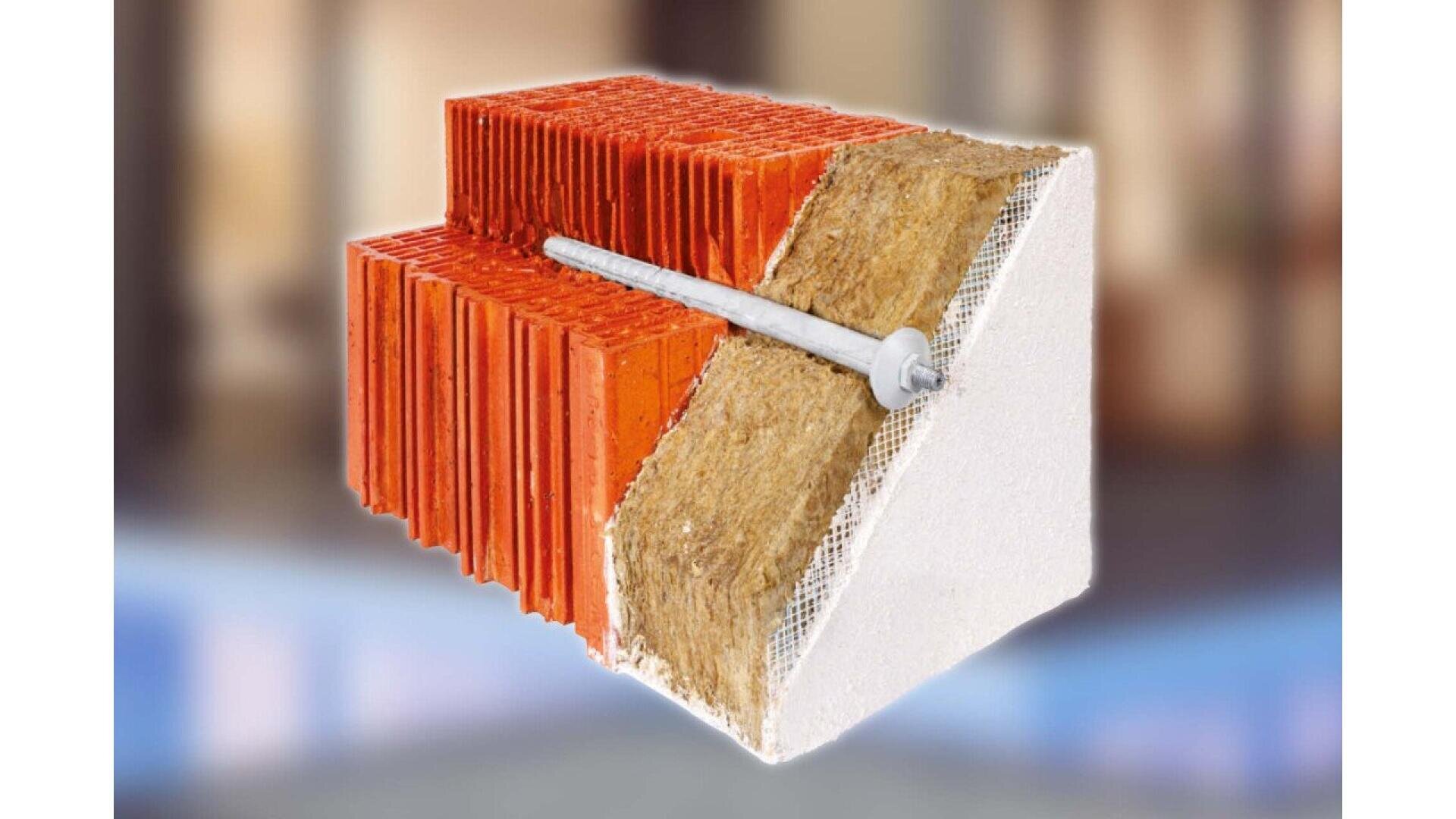

• 235 mm (insulation thickness up to 160 mm) for mineral wool ETICS
• 295 mm (insulation thickness up to 200 mm) for mineral wool ETICS
